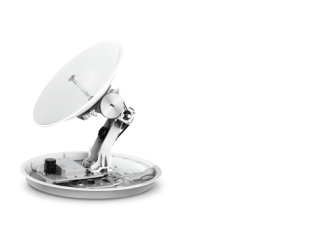

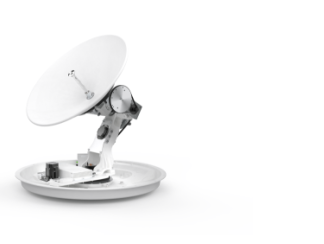

GX60NX 2 HP

A 65cm High Power Inmarsat GX Terminal for Fleet Xpress

Intellian GX60NX HP is a High Power 2.5GHz Ka- Wideband ready Global Xpress terminal with a 65cm diameter reflector. The GX60NX HP is designed with a compact lightweight antenna enabling easy installation. The GX60NX HP incorporates a 10W BUC enabling much higher throughput.

The All-In-One GX BDT integrates the GX Modem and GX Mediator, making it efficient to install in an FX rack. The GX60NX’s new operation platform ensures quick configuration and activation with its smart operational software AptusNX.

GX60NX 2 HP
Key Features

Compact and Lightweight

Even though the weight is dramatically reduced, the terminal performance is not compromised.

High Power BUC

The 10W high power BUC enables much higher throughput on the Fleet Xpress network. Ideal for smaller vessels who demand global high bandwidth capability.

Future Proof Design

Ready for operation on 2.5GHz Ka-wideband satellites with a Frequency-Tuned Radome & Reflector.

New All in One Integrated Below Deck Terminal

The all-new GX BDT integrates ACU, GX modem, power supply, 4-port switch and GX Mediator.

Quick and Easy Deployment

  • No internal shipping brackets
  • Pre-slung lifting strap included as standard
  • Easy mounting on the vessel
  • Single coax cable design with external cable connection to the radome
  • Quick and easy commissioning using the AptusNX Install Wizard

Compact Design with High Performance

  • 10W high power BUC for greater throughput
  • Lightweight and best in class RF performance
  • Rackmount 1U single BDT including ACU and modem
  • Dual Antenna Mediator built in
Specifications

Radome Dimension

86x92.5 cm (33.85x36.4 inch)

Reflector Diameter

65cm (25.6inch)

Antenna Weight

39 kg/ 86 lbs

TX Frequency

29.0~30.0GHz Ka-band

RX Frequency

19.2~20.2GHz Ka-band

TX Gain

44.2 dBi @ 29.5 GHz (excl. radome)

RX Gain

40.5 dBi @ 19.7GHz (excl. radome)

G/T

16.2 dB/K (min.)
