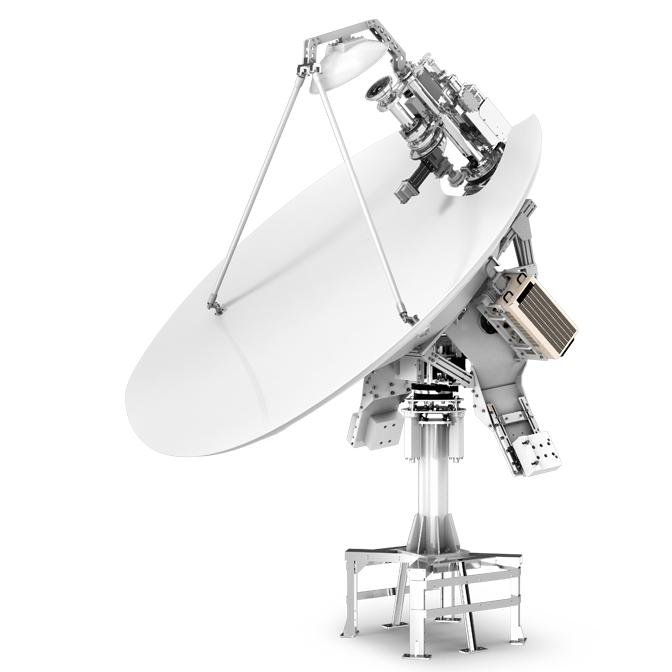

v240MT 2

2.4m Multi-orbit & Tri-band VSAT Antenna System

The v240MT 2 is the world’s first and only multi-orbit and Tri-band antenna system that enables communication services in three different frequency bands and tracks Geostationary Earth Orbit (GEO) and Medium Earth Orbit (MEO) satellites.

v240MT 2
Key Features

Frequency & Orbit Agnostic Capabilities

The Intellian v240MT 2 solution provides the unique capability of switching among different satellite frequency bands and satellite orbits as required without any user intervention

True 2.4m Multi-band RF Performance

The v240MT 2 provides unsurpassed seamless operation for vessels in cruise and energy industries requiring increased bandwidth, wider coverage, and greater reliability.

Fiber Optic Solution

The Fiber optic solution, based on our extensive fiber optic experience, results in minimal signal loss regardless of interconnecting cable length. It enables greater bandwidth capability compared to a coaxial cable connection between an ADU and BDU. The Fiber optic solution is a significant benefit for high throughput installations and allows for quicker and more flexible installation solutions.

The Intelligent Mediator

This incredibly sophisticated and flexible system allows for automatic switching between networks, satellites, orbits, and importantly, provides support for Dual Data Centers. All of this happens automatically, without any user intervention, to ensure data integrity and no dropped calls.





Product Video image
Product Video

Learn More About 2.4M Multi-Orbit Multi-Band Satellite Communication Solutions

A quick video highlighting key features and strengths.

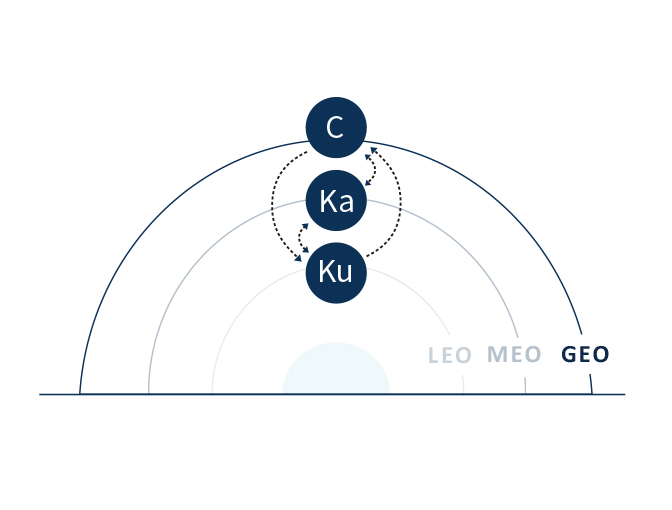

Automatic Frequency Band Switching

Performs automatic frequency band switching without user intervention, enabling the operator to select the optimum solution for the geographic location and satellite service provider options.

  • Making seamless NGSO handover possible
  • Hybrid service combination - GEO-MEO
  • Enabling more bandwidth and more reliable connectivity

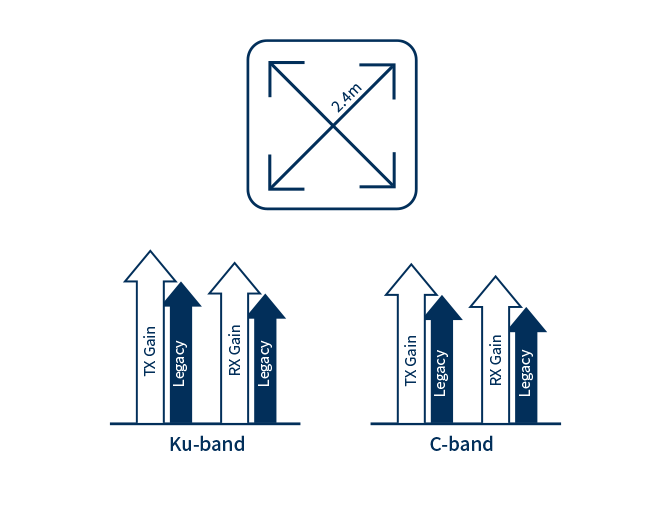

Best In-Class RF Performance

The upgraded design assures improved RF performance enabling high-speed, high-quality connectivity for high-bandwidth users. The v240MT 2 Provides unsurpassed seamless operation for vessels in the cruise and energy sectors requesting extreme bandwidth, coverage, and reliability.

  • Enhanced Multi-band RF Module
  • Optimized and Tuned for 2.5GHz Wideband Ka-

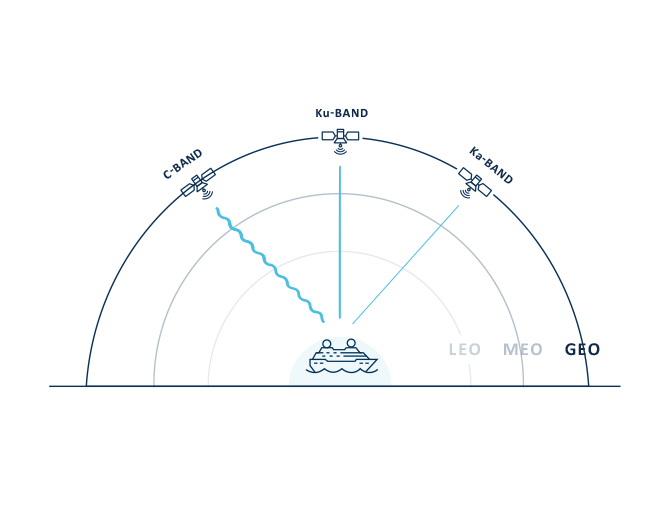

GEO/MEO Tracking Capability

The Intellian v240MT 2 is the world’s only antenna that supports GSO & NGSO in three different frequency bands (C-, Ku-, Ka-band)

  • Fast and accurate tracking and handover performance
  • Proven at sea performance with multiple satellite operators
  • High level of speed competitiveness by accessing three different frequency bands
  • Smart Handover using the Intellian Intelligent Mediators

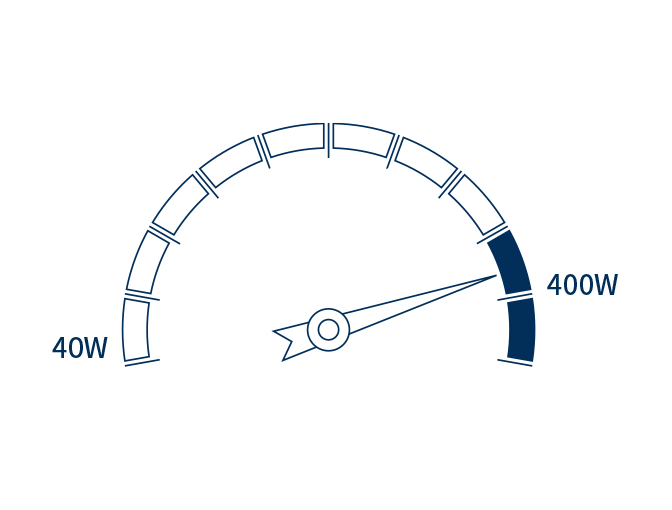

High Power BUC Support

Various BUC options can be specified, up to 400W in both C- and Ku-bands allowing fully customized BUC power solutions.

  • Hardware designed to accommodate high power BUC options
  • 40W to 400W BUC options available for C- and Ku-band
  • Easy maintenance is made possible with ethernet M&C direct to the BUC's

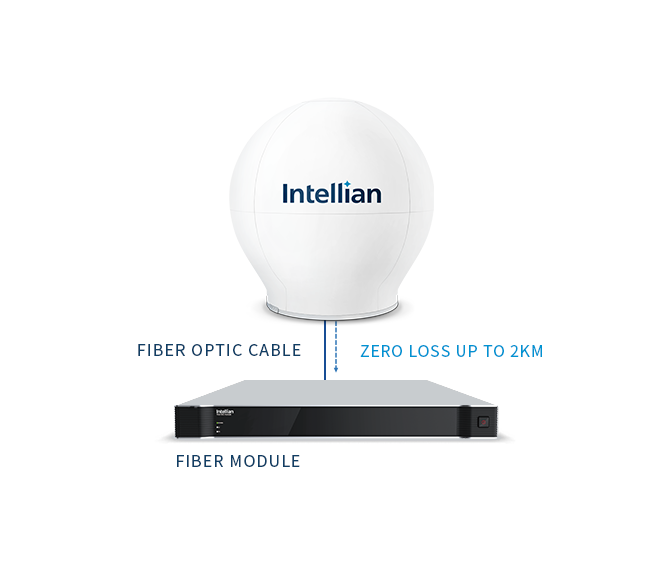

Fiber Optic Solution

Fiber optic connections are used to interconnect the antennas and below deck units, based on our extensive fiber optic experience, resulting in minimal signal loss regardless of cable length and more flexible installation options.

  • Exclusively designed for Intellian VSAT systems
  • A single fiber optic cable connection between the antenna and the ACU instead of 4 coaxial cables
  • Zero signal loss up to 2km distances
  • Simple installation with compact equipment

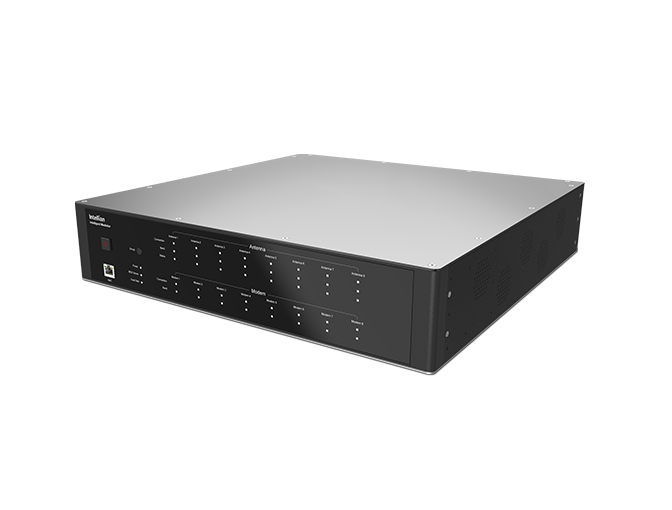

Intelligent Mediator Support

The Intellian Intelligent Mediators enable operation across different frequency bands at same time with multiple antennas along with multiple modems. Ensuring seamless connection by switching antennas automatically if one antenna becomes blocked or or is out of coverage.

  • All-in-One Device to manage Multi-Orbit, Multi-Band antennas
  • RF Switching between multiple modems
  • Mediator for redundant antenna system
  • Smart handover for NGSO satellite tracking
  • MEO/GEO hybrid operation

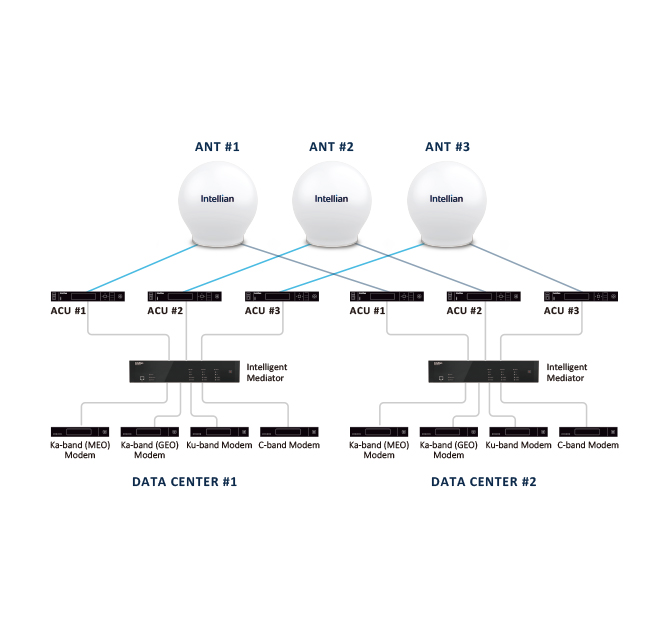

Multi-Antenna Operation with Dual Data Centers

Supporting Dual Data Centers on a ship ensures uninterrupted connectivity. The identical mirrored systems, including a full complement of antenna controllers, Intelligent Mediators and satellite modems, can handle instant changeover with no manual intervention, an important factor in crew safety and vessel operations.

  • Provide system redundancy of the satellite networks
  • Automated instant changeover with no manual intervention
  • Up to 3x antennas connectable via Intelligent Mediator IM3
  • Up to 8x antennas and 8 modems connected using the Intelligent Mediator IM8

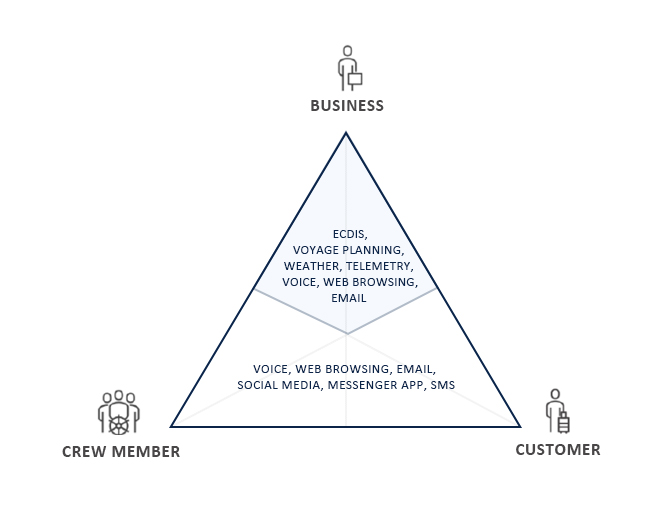

The benefits of a 2.4m satellite communication solution

Staying connected at sea is important for Crew and Guests, the v240MT provides the level of connectivity you might expect when onshore. Allowing enterprise apps and business applications to run the operations of the vessel, while still being able to provide for crew and guest welfare.

Compare Products

Category

v240MT 2 C-band

v240MT 2 Ku-band

v240MT 2 Ka-band

v240MT 2 C-band

v240MT 2 Ku-band

v240MT 2 Ka-band

v240MT 2 C-band

v240MT 2 Ku-band

v240MT 2 Ka-band

Radome Dimension (HxD)

431x391 cm (169.5x154.0 inch)

431x391 cm (169.5x154.0 inch)

431x391 cm (169.5x154.0 inch)

431x391 cm (169.5x154.0 inch)

431x391 cm (169.5x154.0 inch)

431x391 cm (169.5x154.0 inch)

431x391 cm (169.5x154.0 inch)

431x391 cm (169.5x154.0 inch)

431x391 cm (169.5x154.0 inch)

Reflector Diameter

240 cm (94.5 inch)

240 cm (94.5 inch)

240 cm (94.5 inch)

240 cm (94.5 inch)

240 cm (94.5 inch)

240 cm (94.5 inch)

240 cm (94.5 inch)

240 cm (94.5 inch)

240 cm (94.5 inch)

Antenna Weight

1,133 kg/ 2,498 lbs

1,133 kg/ 2,498 lbs

1,133 kg/ 2,498 lbs

1,133 kg/ 2,498 lbs

1,133 kg/ 2,498 lbs

1,133 kg/ 2,498 lbs

1,133 kg/ 2,498 lbs

1,133 kg/ 2,498 lbs

1,133 kg/ 2,498 lbs

TX Frequency

5.85~6.425 GHz

13.75 GHz ~ 14.5 GHz

27.5 GHz ~ 30.0 GHz

5.85~6.425 GHz

13.75 GHz ~ 14.5 GHz

27.5 GHz ~ 30.0 GHz

5.85~6.425 GHz

13.75 GHz ~ 14.5 GHz

27.5 GHz ~ 30.0 GHz

RX Frequency

3.625~4.2 GHz

10.7 GHz ~ 12.75 GHz

17.7 GHz ~ 20.2 GHz

3.625~4.2 GHz

10.7 GHz ~ 12.75 GHz

17.7 GHz ~ 20.2 GHz

3.625~4.2 GHz

10.7 GHz ~ 12.75 GHz

17.7 GHz ~ 20.2 GHz

TX Gain

42.0 dBi @ 6.14 GHz (excl. radome)

48.6 dBi @ 14.25 GHz (excl. radome)

51.9 dBi @ 28.5 GHz (excl. radome)

42.0 dBi @ 6.14 GHz (excl. radome)

48.6 dBi @ 14.25 GHz (excl. radome)

51.9 dBi @ 28.5 GHz (excl. radome)

42.0 dBi @ 6.14 GHz (excl. radome)

48.6 dBi @ 14.25 GHz (excl. radome)

51.9 dBi @ 28.5 GHz (excl. radome)

RX Gain

38.4 dBi @ 3.91 GHz (excl. radome)

47.7 dBi @ 11.85 GHz (excl. radome)

49.2 dBi @ 18.7 GHz (excl. radome)

38.4 dBi @ 3.91 GHz (excl. radome)

47.7 dBi @ 11.85 GHz (excl. radome)

49.2 dBi @ 18.7 GHz (excl. radome)

38.4 dBi @ 3.91 GHz (excl. radome)

47.7 dBi @ 11.85 GHz (excl. radome)

49.2 dBi @ 18.7 GHz (excl. radome)

G/T

19.0 dB/K @ 3.91 GHz (Incl. radome)

28.0 dB/K @ 12.75 GHz (Incl. radome)

25.0 dB/K @ 18.7 GHz (Incl. radome)

19.0 dB/K @ 3.91 GHz (Incl. radome)

28.0 dB/K @ 12.75 GHz (Incl. radome)

25.0 dB/K @ 18.7 GHz (Incl. radome)

19.0 dB/K @ 3.91 GHz (Incl. radome)

28.0 dB/K @ 12.75 GHz (Incl. radome)

25.0 dB/K @ 18.7 GHz (Incl. radome)

Accessories

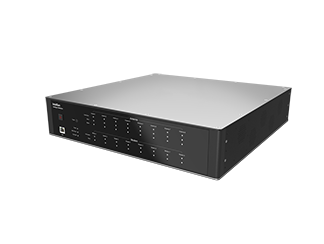

 Intelligent Mediator
Intelligent Mediator

The Intelligent Mediator works with up to three v240 antennas and 4 modems to provide seamless switching between orbits and modems.

Learn More
FiberLink
FiberLink

Fiber optic connection from antenna to below deck units eliminates any cable loss.

Learn More
