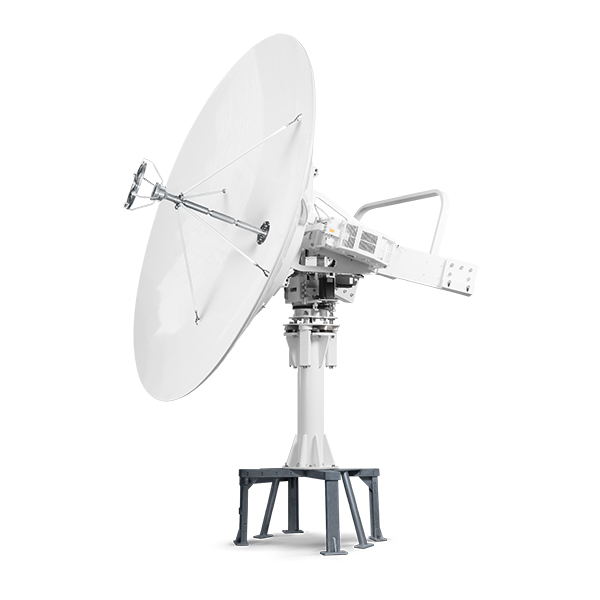

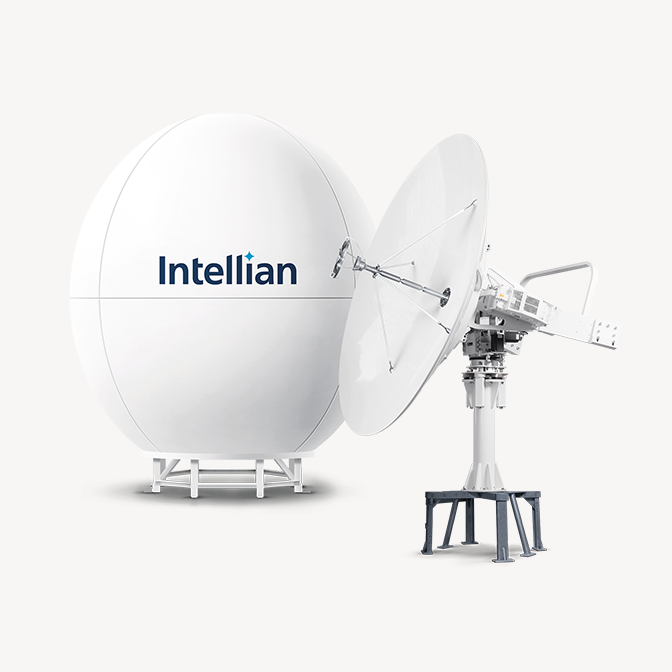

2.4m Ku-band Maritime VSAT Antenna System

The v240K provides unsurpassed satellite communications for vessels in the cruise and energy markets that require high bandwidth. The advanced RF design of the system assures consistent performance on the Ku-band.

Key Features

Straightforward Installation, Setup and Operation

Once a satellite’s peak signal position is acquired during first-time setup, the unit will automatically re-adjust accordingly every time it boots, saving you time, therefore increasing efficiency onboard.

Wide Elevation Range

The v240K’s wide-look angle pedestal design is ideally suited for extremely low or high latitude areas, such as the Scandinavian Peninsula or the Equatorial regions. Empower your vessel with the ability to travel far, without the worry of signal loss.

Antenna Dome Air-conditioning

The optional temperature control assembly provides the dome enclosure’s interior with air conditioned cooling or heating as needed.

Various BUC Options Available

BUC options are selectable to suit specific customer requirements. Various BUC powers, from 40W to 250W, can be utilized in the system.

Superior Tracking - Global Performance

  • Auto switching between circular and linear polarization
  • Ultra-wide elevation range enables superb connectivity even in extremely low and high latitude regions
  • Available C- and Ku-Band system conversion for complete flexibility

Smaller, Lighter, Faster

  • Radome design reduces the overall on-deck footprint by more than 30%
  • Carbon composite reflector reduces overall weight of the antenna
  • Simplified radome design and pre-assembled antenna saves installation time

Radome Dimension

410x330 cm (161.4x130.0 inch)

Reflector Diameter

240 cm (94.5 inch)

Antenna Weight

670 kg/ 1477 lbs

TX Frequency

13.75~14.5GHz Ku-band

RX Frequency

10.7~12.75GHz Ku-band

TX Gain

48.0 dBi @ 14.25 GHz (excl. radome)

RX Gain

46.6 @ 11.85 GHz (excl. radome)


27.6 dB/K (min.)


Fiber optic connection from antenna to below deck units eliminates any cable loss.

Learn More
Dual VSAT Mediator
Dual VSAT Mediator

The dual VSAT mediator switches between two VSAT systems, avoiding signal loss due to blockage. The NX-series incorporates this function internally.

Learn More
