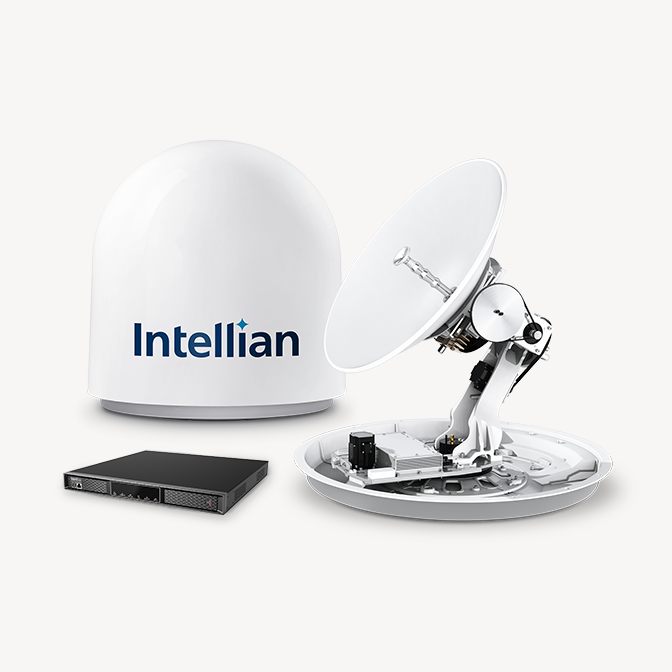

v60E
65cm Ku-band Maritime VSAT Antenna System
The v60E is a lightweight and affordable Ku-band stabilized VSAT maritime antenna system designed for entry into new market sectors and to increase the competitive edge in the 65cm class. The v60E’s RF design delivers higher levels of performance, with a standard 6W BUC with 8W option, and Cross-pol only configuration, at significantly reduced pricing. It also provides customers with lower budget access to the quality and reliability of an Intellian product with improvement in link budget margin.
Compact and Lightweight
Reduces freight and installation costs thereby lowering the total cost of ownership
Quick and Easy Installation
Single coax cable connection allows for quick onboard deployment.
Antenna Management Platform
Intellian’s integrated Aptus platform, provides a responsive web user interface to manage and control the antenna system.
Intelsat Flex Certified
The v60E ensures access to high-throughput satellite networks
Compact and Lightweight
- Ideal for smaller vessels which have limited space for a larger system
- Compact package reduces freight and deployment costs
- Overall lower total cost of ownership
Quick and Easy Installation
- Single Cable connection
- Pre-slung lifting straps
- Aptus step by step installation wizard to guide easy installation
Radome Dimension
93x86 cm (36.6x33.9 inch)
Reflector Diameter
65cm (25.6inch)
Antenna Weight
42kg/ 92.6 lbs
TX Frequency
13.75~14.5GHz Ku-band
RX Frequency
10.7~12.75GHz Ku-band
TX Gain
37.9 dBi @ 14.25 GHz (excl. radome)
RX Gain
36.5 dBi @ 11.7 GHz (excl.radome)
G/T
15.5 dB/K (min.)
