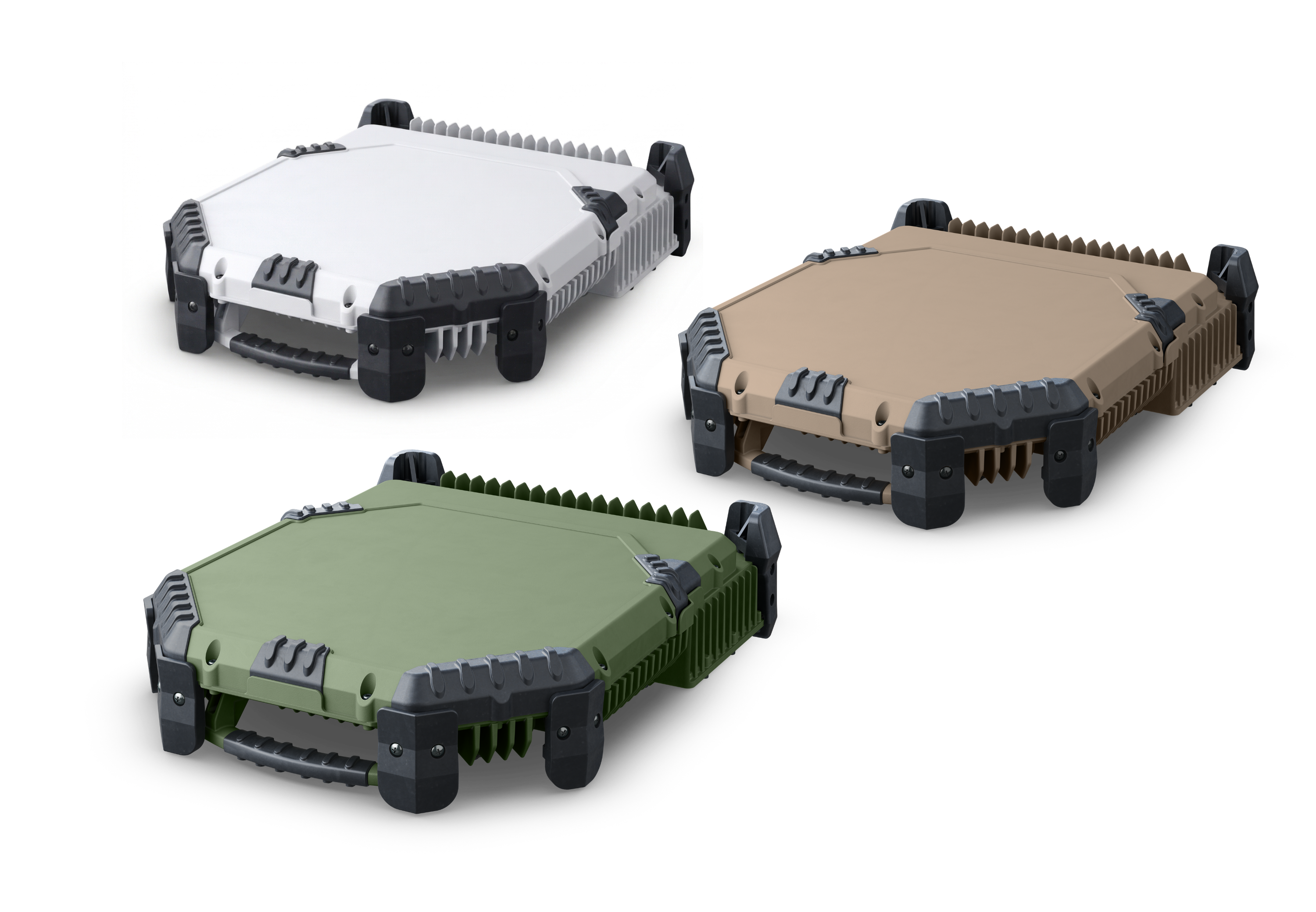

OW7MP Manpack
Fully integrated, ruggedized user terminal
Designed for rapid deployment, the OW7MP Manpack is an ultra-portable, ruggedized user terminal powered by Eutelsat's OneWeb LEO network. Small and lightweight, it fits into backpacks and features one-touch network acquisition for immediate operation. The OW7MP delivers resilient, low-latency connectivity while prioritizing operator safety and seamless connection to the network.
- OW7MP Manpack
- Key Features
- Specifications
- Downloads
- Where to Buy
Exceptional Performance
Based on Intellian’s proven AESA architecture, the OW7MP Manpack delivers exceptional performance with throughputs up to 57 x 10 Mbps. Featuring G/T of 7dB/K and EIRP of 36.6dBW, the Manpack ensures reliable connectivity for Comms-on-the-Pause (COTP) and Comms-on-the-Move (COTM) applications from 5 to 130 kph. Performance below 5kph may vary.
Durable Design
The OW7MP is an ultra-portable, fully integrated, ruggedized terminal certified for the Eutelsat’s OneWeb LEO network. It delivers exceptional environmental resilience with compliance to IP67 rating and ruggedized to meet MIL-STD-810H shock, vibration, drop, and environmental requirements.
Optimized Form Factor
Weighing less than 9kg, this compact fully integrated unit seamlessly fits into a backpack with its 458 x 358 x 108 mm form factor. The optimized design enables low power consumption, delivering reliable performance for extended periods of time when powered by external batteries, including up to five hours of operation in Power Saving Mode.
Ease of Deployment
With built-in automated true-north calibration, the Manpack enables fast and simple network acquisition with minimal operator interaction.
The system incorporates Resilient Global Navigation Satellite System (R-GNSS) support, enabling integration with Alternative Positioning, Navigation and Timing (Alt-PNT) devices using L1 signals to ensure continued operation in GNSS-denied or contested environments.

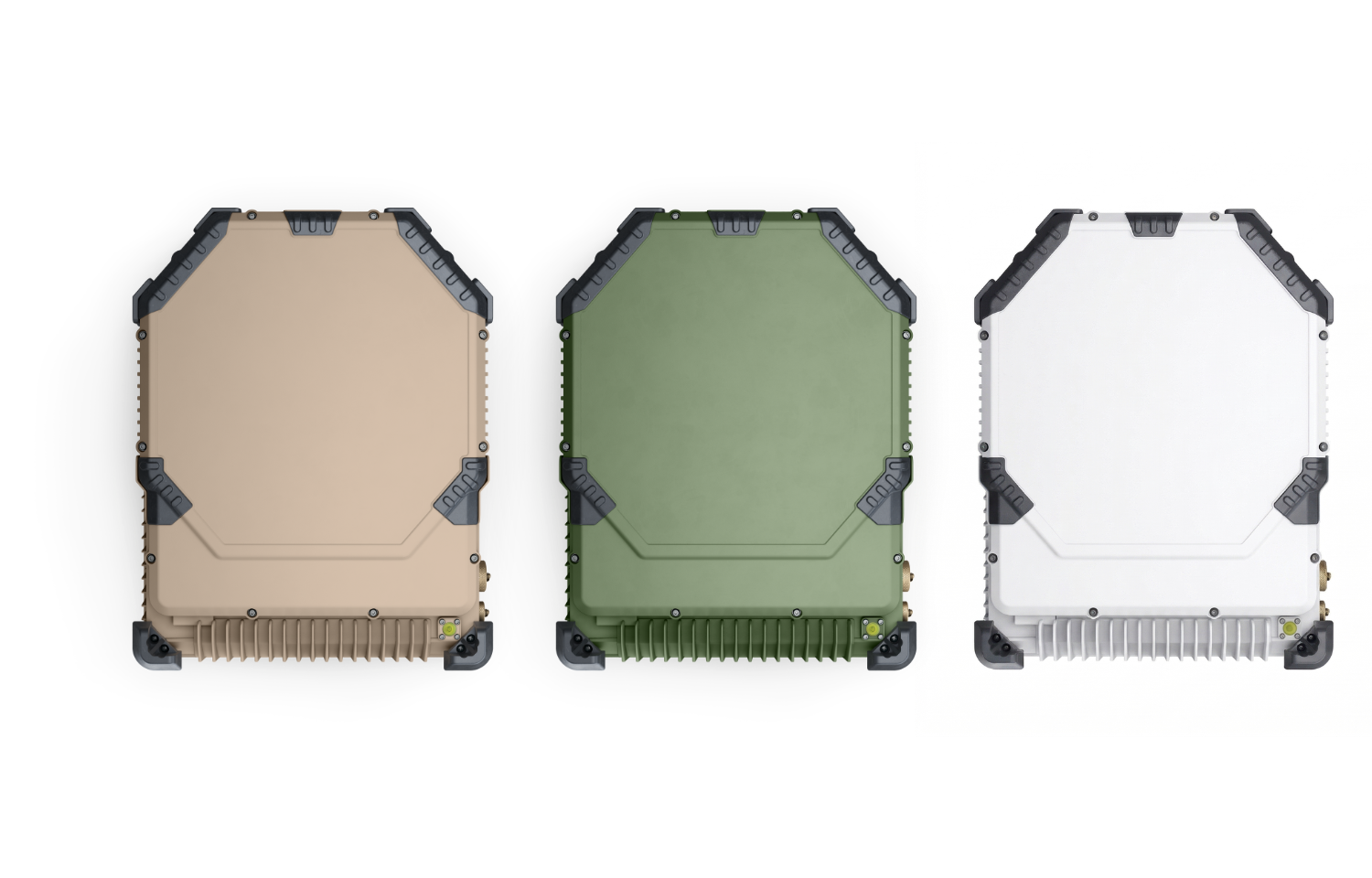

Color Options
The OW7MP Manpack is offered in White, Brown, and Green color options.
High-speed, low-latency connectivity
Powered by Eutelsat’s global OneWeb LEO network, the OW7MP Manpack delivers high-speed, low-latency connectivity wherever communications are required. OneWeb’s constellation of over 600 satellites, operating across 12 synchronized orbital planes at an altitude of 1,200 km, provides resilient global coverage for both Comms-on-the-Pause and Comms-on-the-Move, supporting commercial and government use worldwide.
What’s in the box
- Manpack OW7MP User Terminal
- Mini-Tripod with Quick Disconnect
- Quick Start Guide
- Standoffs with Rubber Caps
- Y” Power Cable (1.5m)
- AC/DC Power Supply Adapter
- Ethernet Cable (3m)
- RF Hazard Decal
Optional accessories include a ruggedized transit case and a variety of Intellian mounts.
Dimensions
458 x 358 x 108 mm (18” x 14” x 4.2”)
Weight
9 kg (19.8 lb)
Operating Temp
-30 °C to +55 °C (-22 °F to +131 °F)
EIRP
+36.6 dBW
INGRESS
IP67
G/T
7 dB/K at boresight
Shock & Vibration
IEC 60068 - IEC 60945 - IEC 60721 - MIL-STD-810H (designed to)
Environmental
IEC 60068 - IEC 60945 - MIL-STD-810H (designed to)
