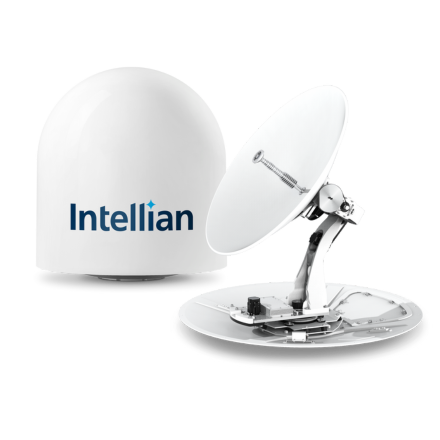

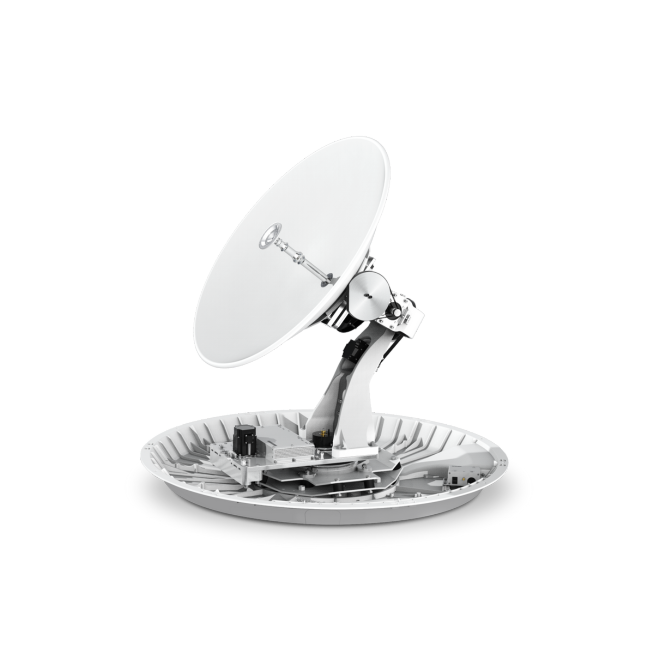

v80E
80cm Ku-band Maritime VSAT Antenna System
The v80E is an affordable Ku-band stabilized VSAT maritime antenna system designed for entry into new market sectors and to increase the competitive edge in the 80cm class. The v80E delivers a simplified installation process and cost savings using the proven and reliable NX platform. As with the established NX, the v80E does not require the radome or hatch to be opened during installation, as the direct cable connection port is applied to the outer radome base.
Advanced performance and design
Intellian’s advanced RF design and technology delivers highly efficient performance, including enhanced tracking precision compared to other 80 cm class systems.
Quick and Easy Installation
The v80E includes a single cable, combining Tx, Rx and DC power into one single solution. This allows for a faster and more cost-eff ective installation, as well as easier troubleshooting and maintenance.
Antenna Management Platform
Intellian’s integrated AptusNX platform, provides a responsive web user interface to manage and control the antenna system.
Reliability and performance
The v80E model boasts a compact and streamlined mechanical design, resulting in a lightweight yet robust antenna. This design is engineered to maintain the high levels of reliability and performance essential for maritime environments.
Lowest Total Cost of Ownership
Lowers the total cost of ownership, while improving reliability and streamlining maintenance- Aptus - remote installation wizard for faster and more accurate commissioning
- Single cable installation reduces installation time and cost
- Industry-leading warranty
Quick and Easy Installation
- Single Cable connection
- Pre-slung lifting straps
- Aptus step by step installation wizard to guide easy installation
Radome Dimension
113.7x112.7 cm (44.77x44.37 inch)
Reflector Diameter
80cm (31.49inch)
Antenna Weight
76 kg/ 167.55 lbs
TX Frequency
13.75~14.5GHz Ku-band
RX Frequency
10.7~12.75GHz Ku-band
TX Gain
39.8 dBi @ 14.25 GHz (excl. radome)
RX Gain
38.1 dBi @ 11.7 GHz (excl.radome)
G/T
17.8 dB/K (min.)
