v100E

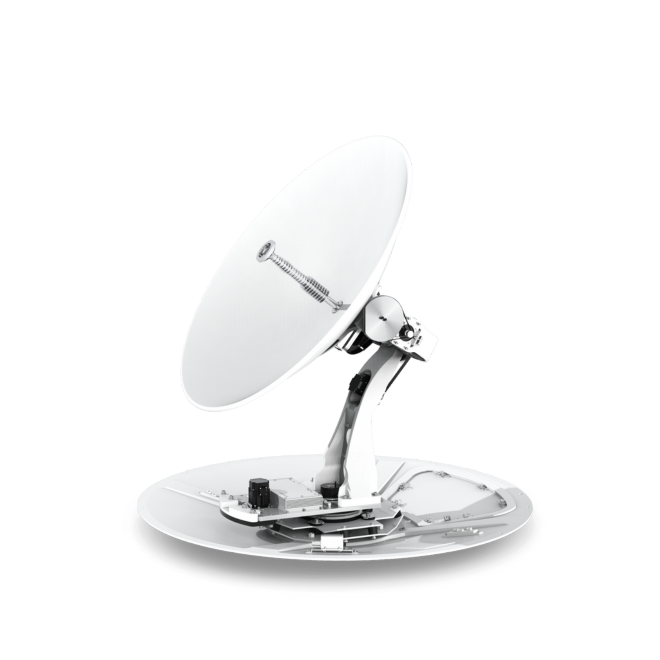

1.05M Ku-band Maritime VSAT Antenna System

The v100E is an affordable Ku-band stabilized VSAT maritime antenna system designed for entry into new market sectors and to increase the competitive edge in the 1 m class. The v100E delivers a simplified installation process and cost savings using the proven and reliable NX platform. As with the established NX, the v100E does not require the radome or hatch to be opened during installation, as the direct cable connection port is applied to the outer radome base.

v100E
Key Features

Advanced performance and design

Intellian’s advanced RF design and technology delivers highly efficient performance, including enhanced tracking precision compared to other 1 m class systems.

Quick and Easy Installation

The v100E includes a single cable, combining Tx, Rx and DC power into one single solution. This allows for a faster and more cost-eff ective installation, as well as easier troubleshooting and maintenance.

Antenna Management Platform

Intellian’s integrated AptusNX platform, provides a responsive web user interface to manage and control the antenna system.

Intelsat Flex Certified

The v100E ensures access to high-throughput satellite networks.

Quick and Easy Installation

  • Single Cable connection
  • Pre-slung lifting straps
  • Aptus step by step installation wizard to guide easy installation

Lowest Total Cost of Ownership

Lowers the total cost of ownership, while improving reliability and streamlining maintenance
  • Aptus - remote installation wizard for faster and more accurate commissioning
  • Single cable installation reduces installation time and cost
  • Industry-leading warranty
Specifications

Radome Dimension

145.9x137.9 cm (57.44x54.29 inch)

Reflector Diameter

105cm (41.33 inch)

Antenna Weight

121 kg/ 266.7 lbs

TX Frequency

13.75~14.5GHz Ku-band

RX Frequency

10.7~12.75GHz Ku-band

TX Gain

42 dBi @ 14.25 GHz (excl. radome)

RX Gain

40.5 dBi @ 11.7 GHz (excl.radome)

G/T

19.8 dB/K (min.)
