OW11FM
Enterprise Flat Panel for Maritime
Optimized Performance
Utilizing Intellian’s innovative antenna design, the OW11FM delivers the maximum throughput allowed on
the OneWeb network. Offering the highest link margin, performance is guaranteed even over scan and at the
lowest elevation angles, ensuring are met the highest demands of maritime and land mobile customers.
Seamless Connectivity
The OW11FM features Intellian’s advanced tracking technology, extended scan range, and blockage mitigation that improves connection reliability and availability even while in motion. Delivering the best performance
at scan, the innovative flat panel technology facilitates smooth reliable handovers, which ensure seamless and undisrupted connectivity.
Harsh Environment Performance
The OW11HM is designed to ensure dependable performance in even the most demanding environments,
operating in extremely low temperatures down to -40 °C and up to +55 °C (-40 °F to +131 °F).
Simplified Installation
Lightweight and sleek design with a single coaxial cable for both power and encrypted data, connects the UT to the CNX. Embedded differential dual GNSS antennas enable automated True North calibration and Tilt Error compensation.
Customer Network Exchange

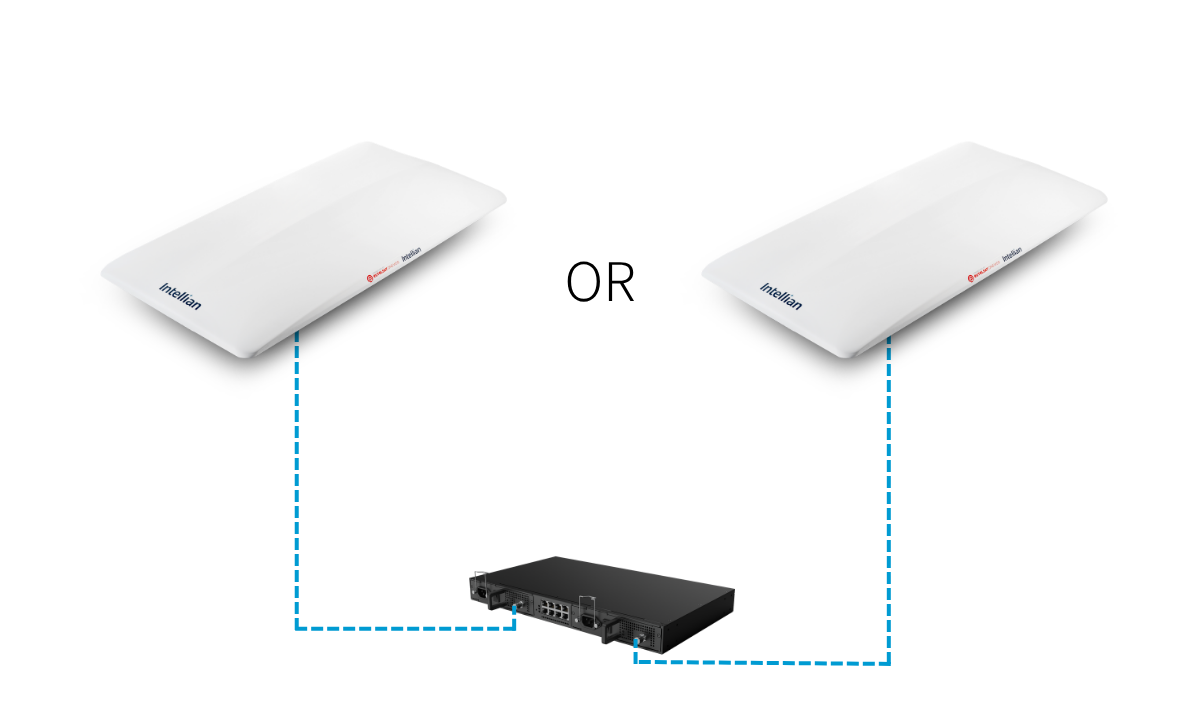

Intellian’s Customer Network Exchange (CNX) units are a critical component of the user terminal installation, providing both the power and data connectivity to the Flat Panel, and the connectivity to customer equipment and networks. For Enterprise Flat Panels there are three CNX variants offered for specific deployments: CNX-WIFI, CNX-RACK and CNX-MOBILITY. Learn more here.
Easily Deployable System
The lightweight design and optimal form factor of the OW11FM enables easy installation by a single person.
Paired with Intellian’s Maritime mount adapter kit, the UT is easily installed on pole, mast and pedestal mounts commonly used in the Maritime market. Installation is further simplified through use of combined power and data over a single coaxial cable connecting the below deck CNX units. The use of Intellian’s mobile app for site survey, automated configuration, and monitoring further reduces the time required to get online.
Dimension
97 x 50 x 13 cm (38.2” x 19.7” x 5.1”)
Weight
20.5 kg (45.1 lb)
Operating Temp
-40 °C to +55 °C (-40 °F to +131 °F)
EIRP (DUAL CARRIER)
+36.6 dBW
INGRESS
1P66
G/T
10.7 dB/k
