VS60
ViaSat-3 60cm maritime terminal for NexusWave

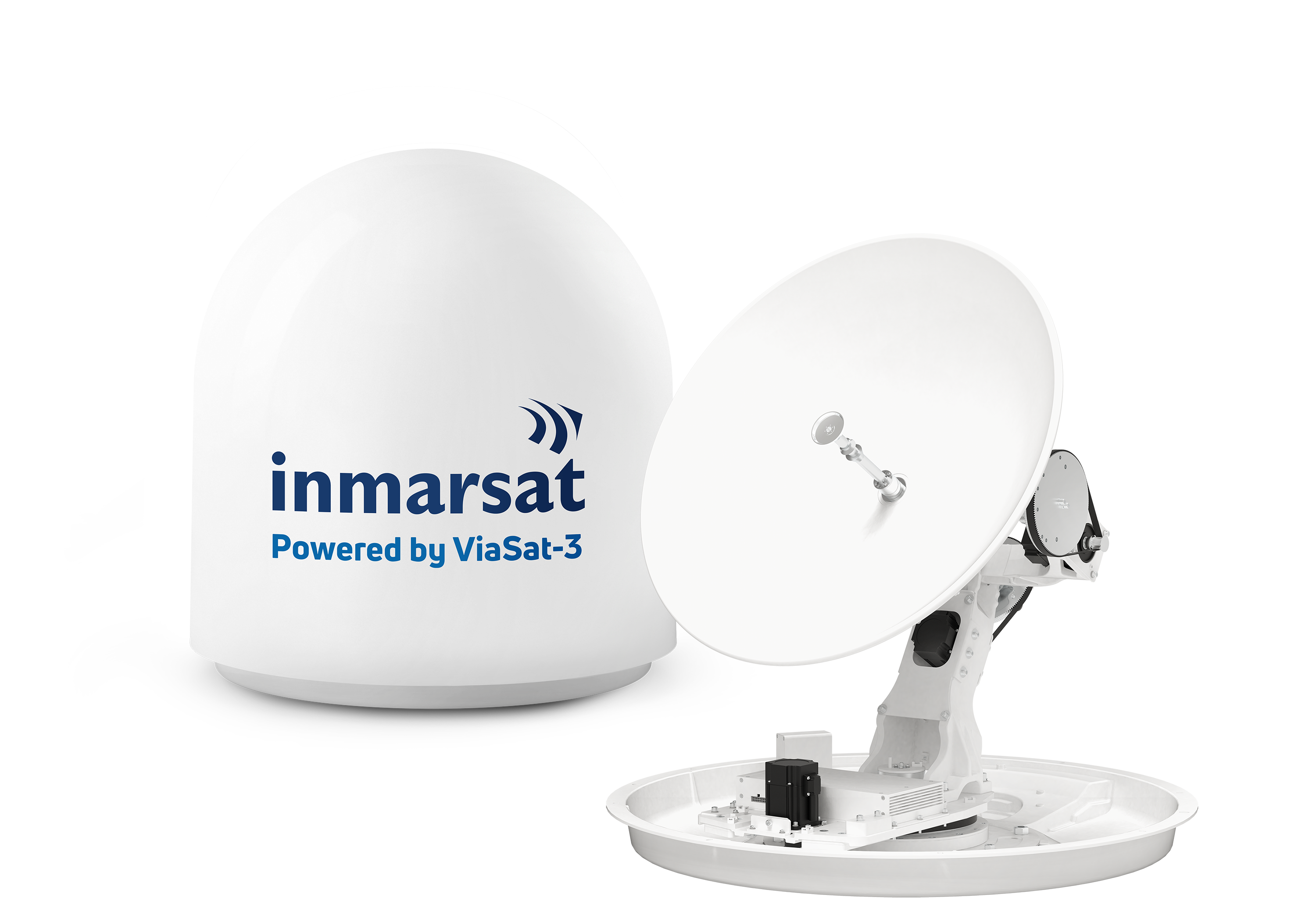

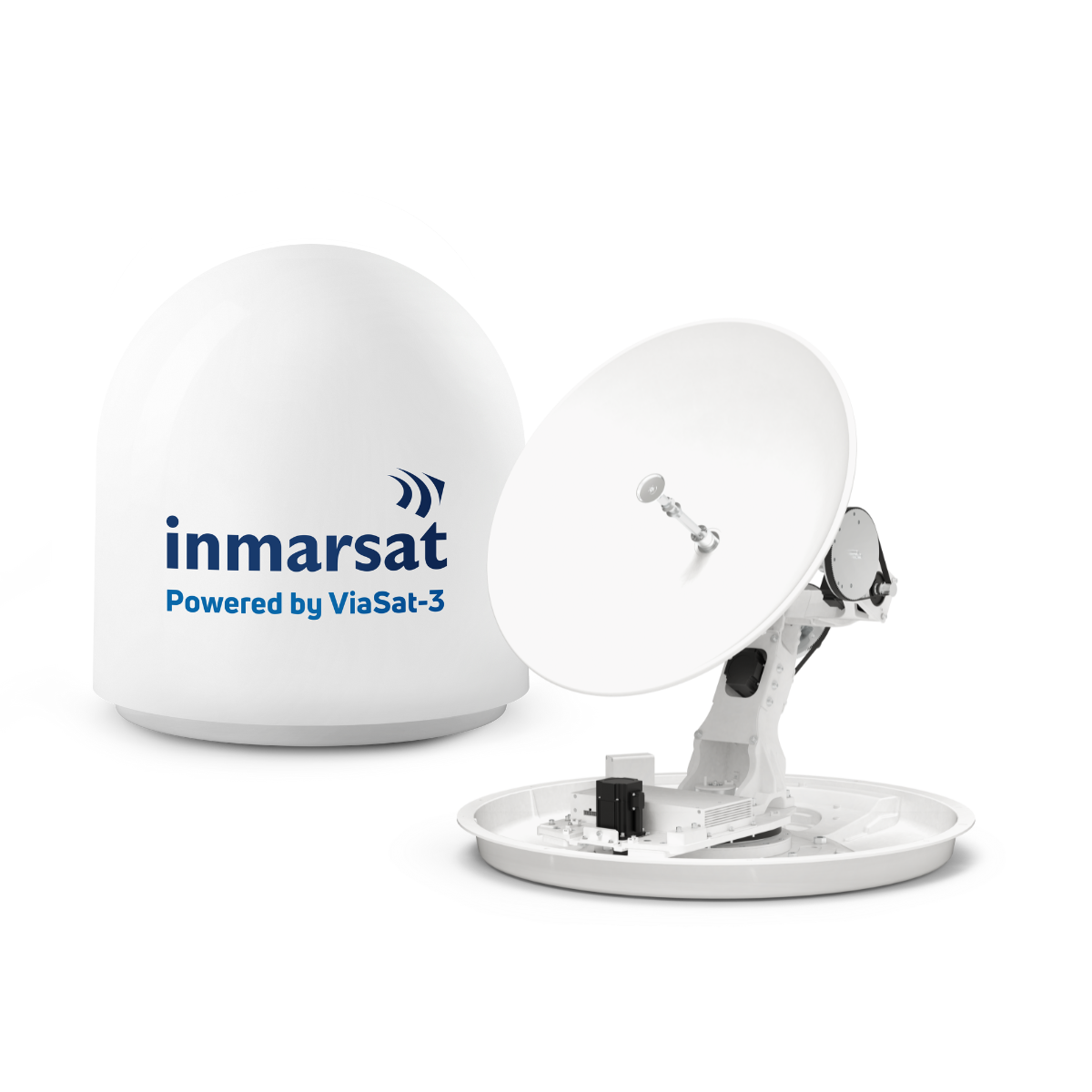

The Intellian VS60 is a purpose-built 65cm Ka-band maritime VSAT terminal designed for the next era of high-capacity satellite connectivity. Optimized for the ViaSat-3 GEO constellation and fully compatible with Inmarsat NexusWave’s bonded network architecture, the VS60 delivers high-speed, reliable broadband to commercial shipping, offshore vessels, and maritime fleets worldwide.
Combining an all-in-one integrated MSDR engine, single-cable MoCA 2.0 installation, and AptusNX control, the VS60 provides seamless deployment, maximum operational uptime, and enterprise-grade security for bandwidth-intensive operations at sea.
ViaSat-3 Network Optimization
Engineered specifically for ViaSat-3's high-capacity GEO constellation, the VS60 utilizes dynamic bandwidth allocation and steerable spot beams to deliver ultra-high-throughput connectivity with consistent, reliable performance across key global shipping lanes.
Integrated Core MSDR Engine
By unifying the modem and High-power transceiver into a single Above Deck Unit module, the VS60 eliminates below-deck clutter, minimizes latency, and removes power calibration during setup for enhanced system reliability.
3.5GHz Wideband Ka-Band
Featuring a full-range reflector and enhanced dual-circular polarizer, the VS60 covers the entire 3.5GHz commercial Ka-band spectrum (Rx 17.7–21.2 GHz / Tx 27.5–31.0 GHz) to maximize data throughput for critical applications.
Streamlined Single Cable Setup
Utilizing MoCA 2.0 technology, a single coax cable delivers Tx, Rx, and 48V DC power externally at the radome base, eliminating the need to open the radome and drastically reducing installation time.
Inmarsat NexusWave Bonded Connectivity Ready
The VS60 is fully ready for Inmarsat NexusWave, integrating seamlessly into a multi-orbit, multi-band bonded network architecture. By combining ViaSat-3 Ka-band capacity with LEO, LTE, and L-band resilience, the terminal ensures uninterrupted, always-on connectivity, enabling an office-like and home-like internet experience for crew welfare, operational data management, and mission-critical vessel communications anywhere at sea.
Smart Operations with AptusNX Management
Powered by Intellian’s AptusNX software, the VS60 offers intuitive web-based control, real-time diagnostics, and automated commissioning wizards. AptusNX automatically compensates for cable loss, executes self-diagnostics, and sends predictive maintenance alerts to the Network Operations Center (NOC) before issues occur, maximizing fleet operational efficiency and reducing total cost of ownership.
Mission-Critical Security & Military Hardening
Designed for demanding environments, the VS60 incorporates multi-layered cybersecurity, including encrypted communications, DevSecOps compliance, and strict access controls. Its ruggedized 3-axis stabilized platform meets IPX6, EN60945, and MIL-STD-810H shock and vibration standards, safeguarding operational integrity against harsh sea conditions, extreme weather, and physical tampering.
Compact SWaP Footprint for Fleets
With a compact 65cm reflector footprint (86cm radome diameter) weighing under 43kg, the VS60 easily fits confined deck spaces on commercial ships, offshore vessels, and fishing boats. Paired with a 1U rack-mount Below Deck Unit (BDU), the system minimizes top-weight and below-deck space requirements while lowering logistics, installation, and field labor costs.
Reflector Diameter
65 cm (25.6 in)
Radome Dimensions
86 cm (W) x 93 cm (H) / (33.9 in x 36.6 in)
System Weight
ADU: < 43.0 kg (94.8 lbs) / BDU: 5.2 kg (11.5 lbs)
Frequency Range
Rx: 17.70 – 21.20 GHz / Tx: 27.50 – 31.00 GHz (3.5GHz Wideband Ka)
G/T
Min. 14.5 dB/K @ 10° EL
EIRP
54 dBW
