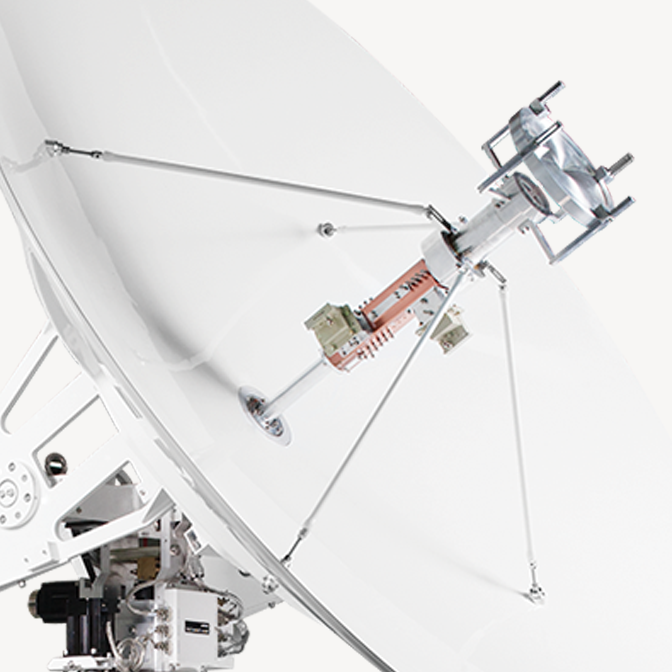

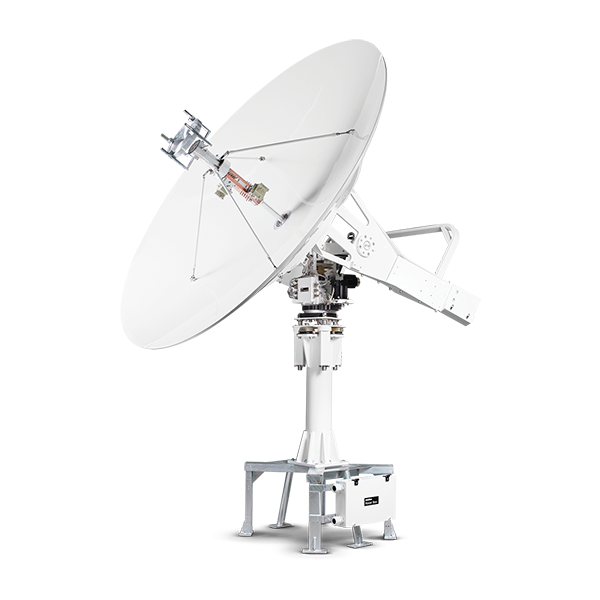

t240CK

WorldView Antennas for Global Performance

2.4m reflector sized antenna which offers simultaneous C-band and Ku-band reception

The t240CK is the world’s first antenna capable of receiving both HD and SD satellite TV services on C-band and Ku-band simultaneously from the same satellite. Intellian’s multi-band and multi-polarization WorldView LNB enables users to seamlessly tune in to any satellite TV service around the globe by simply pushing a button each time the vessel crosses into a different satellite service region.

t240CK
Key Features

Dual Band Reception

Simultaneous C-band and Ku-band TV Reception from a single antenna where available.



Hands-Free WorldView LNB

WorldView LNB for global operation with any satellite TV provider.

Remotely Accessible Antenna Control Unit

  • Networkable with any onboard, Intellian communications system
  • Remotely accessible and upgradable via the Aptus Web interface

FiberLink Ready

  • The Intellian FiberLink module connects the antenna to the below deck units with a single, lossless fiber optic cable, greatly simplifying shipboard installation. Ideal on larger vessels.

Global Leader

  • World’s first antenna capable of receiving satellite TV services on C-band and Ku-band simultaneously
  • Intellian’s multi-band and multi-polarization WorldView LNB
  • Seamlessly tune into any satellite TV service around the globe with the press of a button

Fiber Ready

  • Intellian FiberLink module can be used for long cable run installation environments
  • Enables a single fiber cable connection from the antenna to the below deck units
  • Fiber optic cable can be run up to 2km without signal loss, greatly simplifying shipboard installation
Specifications

Radome Dimension

330 cm x 352 cm (130" x 139")

Reflector Diameter

240cm (94.5")

Antenna Weight

630 kg (1,389 lbs)

Min EIRP

C-band: 31 dBW Ku-band: 35 dBW

Elevation Range

-15˚ to +120˚

Polarization

C-band: Linear or Circular Ku-band: Linear & Circular

Auto Skew

Yes

WorldView Capable

Yes

Accessories
Dual TVRO Mediator
Dual TVRO Mediator

Dual TVRO Mediators mitigate blockage in a dual satellite TV system, automatically switching between antennas.

Learn More
Intellian Multi Satellite Interface Module (MIM)
Intellian Multi Satellite Interface Module (MIM)

The Intellian MIM enables auto switching of satellites when using Dish or Bell TV in North America.

Learn More

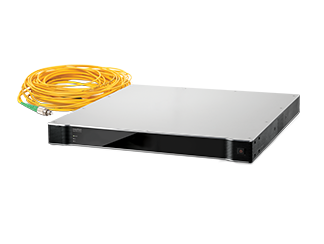

TVRO FiberLink Module
TVRO FiberLink Module

The TVRO Fiber Link system allows longer cable runs on larger vessels with zero signal loss.

Learn More
