v45C

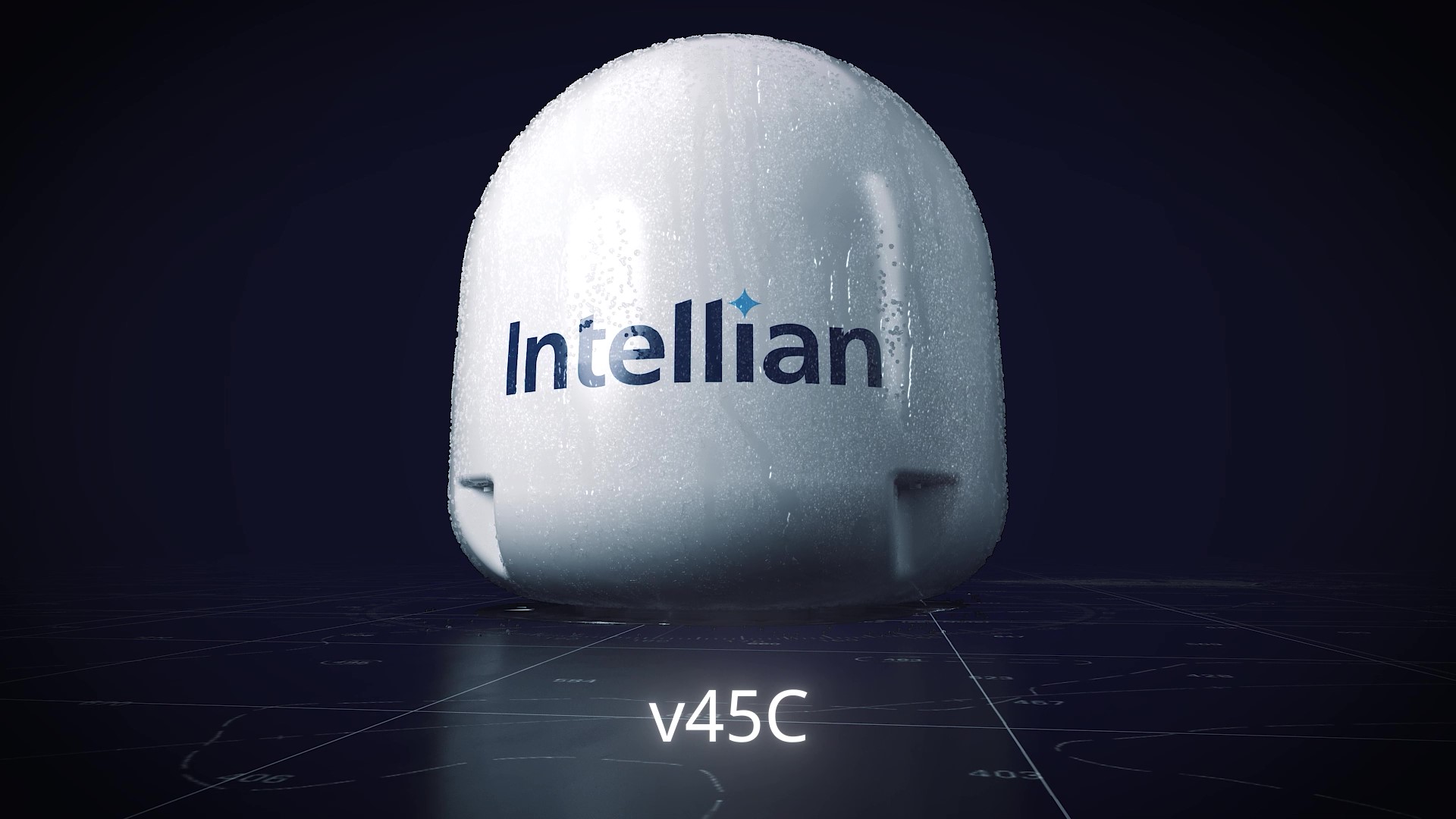

45cm Compact & Light Ku-band VSAT antenna

The v45C is a compact and light-weight 45cm and 23kg maritime Ku-Band system. The v45C VSAT system is designed to deliver enhanced connectivity and user experience to smaller boats and vessels, including fishing, leisure, commercial and government. The antenna offers exceptional value and performance no matter the communication needs or space constraints onboard.

v45C
Key Features

Compact and Light VSAT Terminal

45cm and 23kg maritime Ku-band system provides enhanced connectivity and user experience to smaller boats and vessels.

Quick and Easy Installation

Single coaxial cable is connected externally, so no requirement to access the inside of the radome.

Antenna Management Platform

Intellian’s integrated AptusNX platform, provides a responsive web user interface to manage and control the antenna system.

Unparalleled User Experience

The advanced design ensures Optimal performance on both HTS and wide beam Ku-band satellites.

Optimized Performance

  • The RF design is optimized to deliver best-in-class performance and efficiency.
  • The advanced design ensures optimal performance on both HTS and wide beam Ku-band satellites.
  • Customers have the flexibility of connecting their v45C antenna via their Ku-band service provider of choice.

Unrivalled Global Support

  • Most cost-effective delivery of products and support services through Intellian's global operation and logistic centers
  • Industry leading global support through our in-house engineers and an extensive network of dealers and service partners.
Specification

Radome Dimension

61x62.7 cm (24x24.6 inch)

Reflector Diameter

45cm (17.7inch)

Antenna Weight

23kg/ 50.7 lbs

TX Frequency

13.75~14.5GHz Ku-band

RX Frequency

10.7~12.75GHz Ku-band

TX Gain

34.8 dBi @ 14.25 GHz (excl. radome)

RX Gain

33.2 dBi @ 11.7 GHz (excl.radome)

G/T

>12.3 dB/K (min.)
