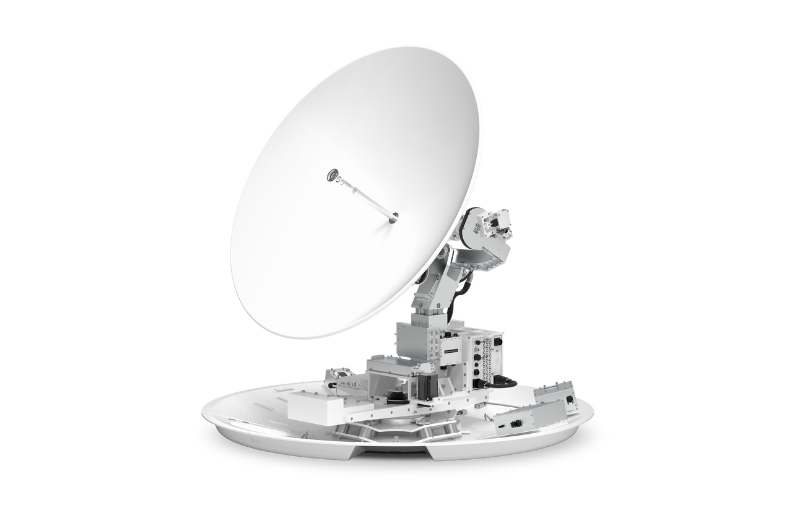

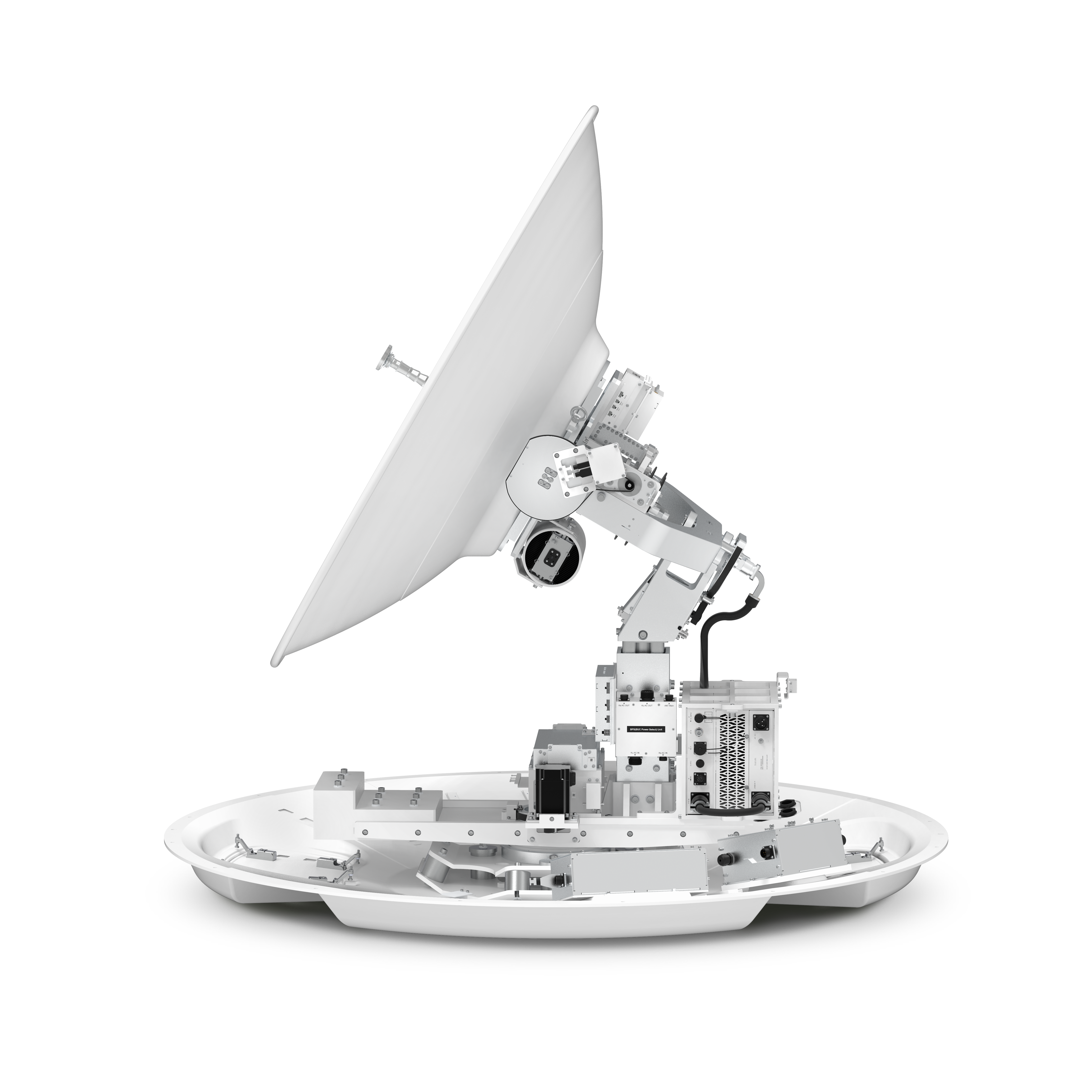

Ku/Ka Electronically Switchable Dual-band Multi-Orbit VSAT

The Intellian X150D is a dual-band VSAT solution that electronically switches between Ku-band and Ka-band operation with a single command. It enables customers with the highest performance, versatility, and high bandwidth demand access to a wide range of service options. This dual band antenna offers seamless connectivity by eliminating the need for conversion kits, or hardware modifications required by conventional terminals.

Key Features

GEO/MEO/LEO tracking capability

Based on proven antenna design and multi-orbit tracking capabilities, the X150D is future proof, providing optimal performance on both existing and new NGSO constellations.

High power upgradable

The X150D provides a wide range of options in terms of BUC power. The X150D supports up to 250W Ku-band, and 100W Ka-band.

Fiber optic solution

Fiber optic solution for the X150D is based on our extensive fiber optic experience, resulting in minimal signal loss regardless of cable length. It enables greater bandwidth capability compared to a coaxial cable connection between the ADU and the BDU. The fiber optic solution is ideal for high throughput installations and allows for quicker and easier installations.

2.5GHz wide Ka-band support

The X150D has a full range-optimized reflector and radome supporting high speed Ka-band services, which covers the entire commercial 2.5GHz Ka-band frequency range. X150D supports dual-polarization and can transmit and receive both LHCP and RHCP Ka-band circular polarization.


IFL switch for Dual-Datacenter

  • Integrated with IFL Switch, the X150D is ready for Dual-Datacenter setup on vessel for failover redundancy.
  • When one of the datacenters fail due to unfavourable environmental conditions, power outages, technical issues or blocked by obstacles, the DDC system can be easily switched to the other datacenter by using the Intelligent Mediator to maintain the antenna operation and the network continuously.

Versatile multi-orbit tracking

  • Dual-band VSAT solution that electronically switches between Ku-band and Ka-band operation with a single command
  • GEO/MEO/LEO tracking capability
  • The X150D can operate on both SES Classic O3b constellation and the new mPOWER constellation

Embedded mediator

  • The X150D is equipped with an embedded mediator in the ACU that enables simultaneous dual modem configurations and dual antenna configurations for blockage mitigation and make-before-break applications
  • No external mediator is needed for connecting to maximum of 2 antennas and 2 modems

Radome Height x Diameter

197 cm / 77.56” x 190 cm / 74.8”

Reflector Diameter

150 cm (59.06 inch)

Antenna Weight

365 kg / 804.7 Ibs

TX Frequency

(Ku-band) 13.75~14.5 GHz, (Ka-band) 27.5~30.0 GHz

RX Frequency

(Ku-band) 10.7~12.75 GHz, (Ka-band) 17.7~20.2 GHz

TX Gain

(Ku-band) 44.3 dBi @ 14.0 GHz, (Ka-band) 48.5 dBi @ 28.8 GHz

RX Gain

(Ku-band) 43 dBi @ 11.85 GHz, (Ka-band) 45.5 dBi @ 19.0 GHz


(Ku-band) 21.7 dB/K, (Ka-band) 21 dB/K
