v60Ka 2

65cm New Ka-band Maritime VSAT Antenna System

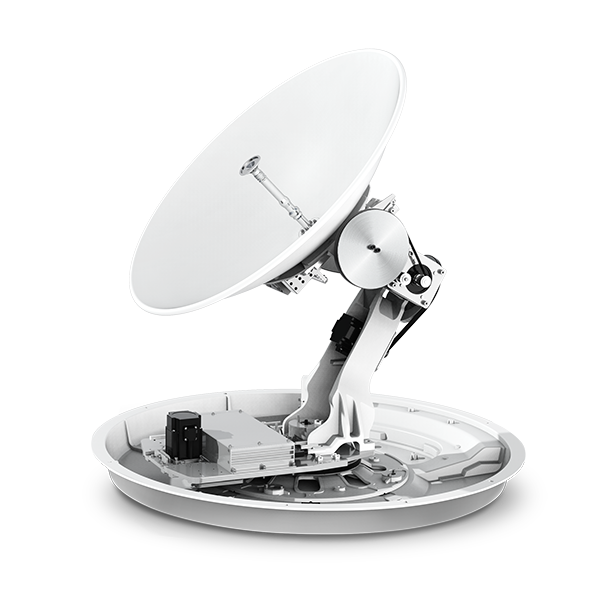

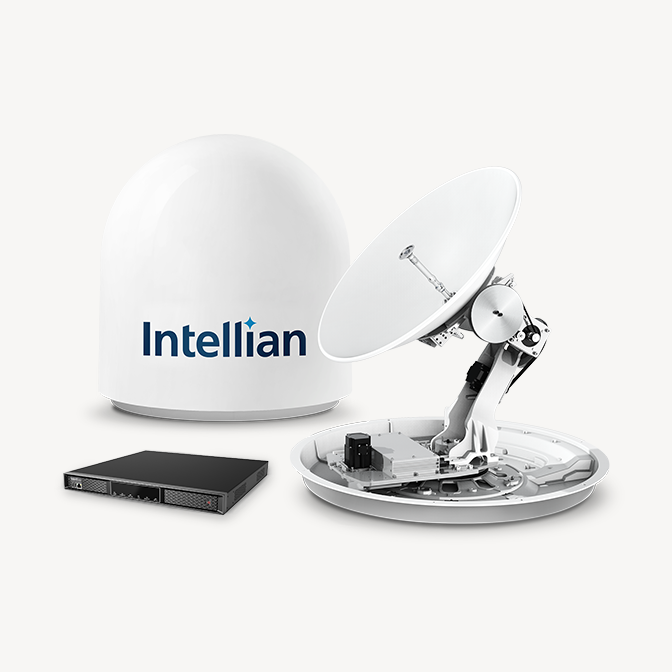

The v60Ka 2 is a lightweight Ka-band stabilized VSAT maritime antenna system with a single cable solution to reduce installation time and costs. The v60Ka 2 is ready for service on Telenor’s high throughput Thor-7 network and ensures outstanding performance and reliability for smaller vessels navigating even the most challenging ocean conditions. The v60Ka 2 is easily upgradeable to a high power BUC or transceiver system enabling higher throughput.

v60Ka 2
Key Features

Compact and Lightweight

Reduces freight and installation costs thereby lowering the total cost of ownership.

Quick and Easy Installation

Single Coax cable connection allows for quick onboard deployment.

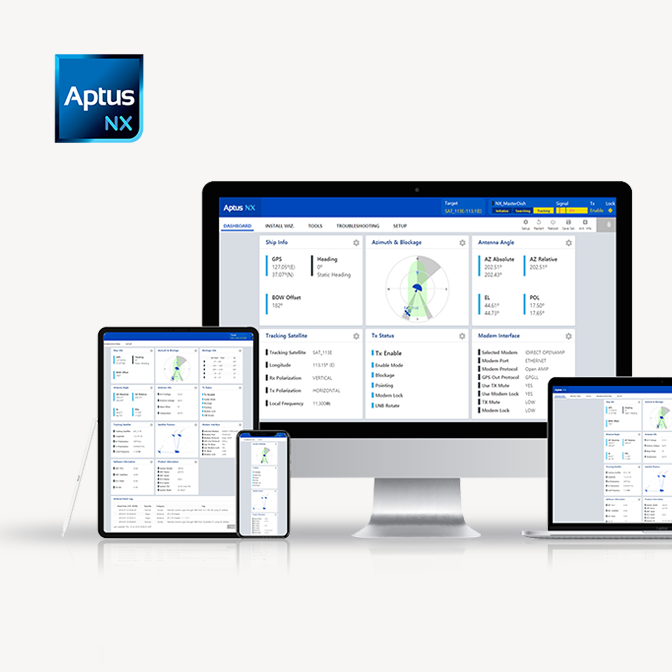

Antenna Management Platform

Intellian’s integrated AptusNX platform, provides a responsive web user interface to manage and control the antenna system.

Most Flexible 60cm Class Ka-band Terminal

The Embedded Dual Antenna Mediator fully supports dual antenna operation without additional complexity and external components.

Compact and Lightweight

  • Ideal for smaller vessels which have limited space for a larger system
  • Compact package reduces freight and deployment costs
  • Overall lower total cost of ownership

Quick and Easy Installation

  • Single Cable connection
  • Pre-slung lifting straps
  • AptusNX step by step installation Wizard to guide easy installation
Compare Products

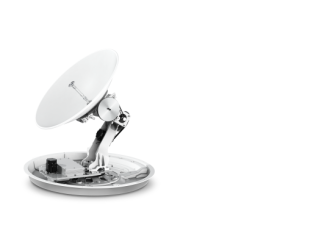

v60ka 2

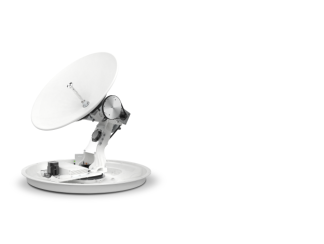

v60ka 2 XCVR

v60Ka 2                                         v60Ka 2 XCVR


Radome Dimension


93x86 cm (36.6”x33.9”)

92.5x86 cm (36.4”x33.85”)


Reflector Diameter

65 cm (25.6")

65 cm (25.6")


Antenna Weight


39 kg (86 lbs)

39 kg (86 lbs)


TX Frequency


29.0~30.0 GHz Ka-band

27.5~30.0 GHz Ka-band


RX Frequency

19.2~20.2 GHz Ka-band

17.7~20.2 GHz Ka-band


TX Gain

44.2 dBi @ 29.5 GHz

44.2 dBi @ 29.0 GHz


RX Gain


40.5 dBi @ 19.7 GHz

40.2 dBi @19.0 GHz



16.2 dB/K (min.)

15.5 dB/K
