t130W/t130Q

WorldView Antenna for Global Performance

1.25m (40 inch) Reflector Ku-band Global Satellite TV System

Intellian’s t130W provides outstanding performance in an 125cm (50in) reflector with the added benefits of Intellian’s proprietary WorldView Technology. This system receives SD or HD programming from any Ku-band satellite TV service around the globe without requiring LNB changes or re-wiring of the system when the vessel travels from one region to another.

* The t130Q comes with a Universal Quad LNB optimized for the European region.

t130W/t130Q
Key Features

WorldView Capable

WorldView LNB for global operation with any satellite TV provider.

Dedicated Model for the European Market

The Q version with Universal Quad LNB provides higher optimized LNB gain for the European region.

Quattro Switching Module Pre-installed

Embedded Quattro Switching Module, which intelligently distributes different tone signals to the correct ports on any legacy multi switches installed throughout the ship.

Easy Configuration

The t130W/t130Q includes a built-in GPS inside of the antenna unit for faster signal acquisition and can interface with onboard heading sensors using the NMEA0183 or NMEA2000 ports

Automatic acquisition of the correct satellite with the inbuilt Global Satellite library for simple setup and easy regional switching

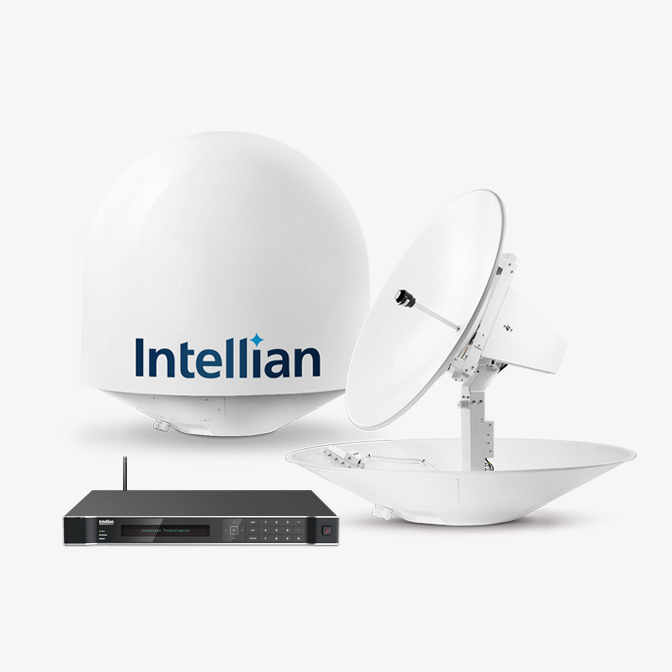

Fully Integrated Solution

  • With its Wi-Fi enabled ACU, users can connect wirelessly to the antenna using Aptus PC
  • Aptus offers users instant diagnostics, performance logging functions, and one touch updates of firmware and satellite library

Unrivaled Satellite Performance at Sea

  • The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition
  • High speed 3-axis stabilization platform ensures signal lock at high speeds and in rough seas
  • Simplicity of design, no external compass or rate sensors required
Specification

Radome Dimension

165.2 cm x 168.4 cm (65" x 66.2")

Reflector Diameter

125cm (49.2")

Antenna Weight

117 kg (258 Ibs)

Min EIRP

40 dBW

Elevation Range

-15˚ to +120˚

Polorization

"t130W: Linear and Circular t130Q: Linear"

Auto Skew

Yes

WorldView Capable

t130W
